WELMAR OILFIELD
Slickline & wireline equipment support

One place for all your slickline & wireline units, PCE & Mast needs.

We deliver parts all over the world — service and parts support for slickline and wireline units, pressure control equipment and masts.

Lowest price · Fastest delivery
Request support View equipment we support
Derrick & mast · wellhead equipment · wireline unit
Regional coverage

Support across five countries

Welmar Oilfield supports slickline and wireline operations on location and in-shop across the following countries.

QA
Qatar
Home base · active support
SA
Saudi Arabia
Active support
AE
United Arab Emirates
Active support
OM
Oman
Active support
DK
Denmark
Active support
Service & parts

Equipment we service and supply parts for

Full support for slickline and wireline units, pressure control equipment and masts, across the major manufacturers used in the field.

Units

Rig-up, maintenance and overhaul of surface winch units.

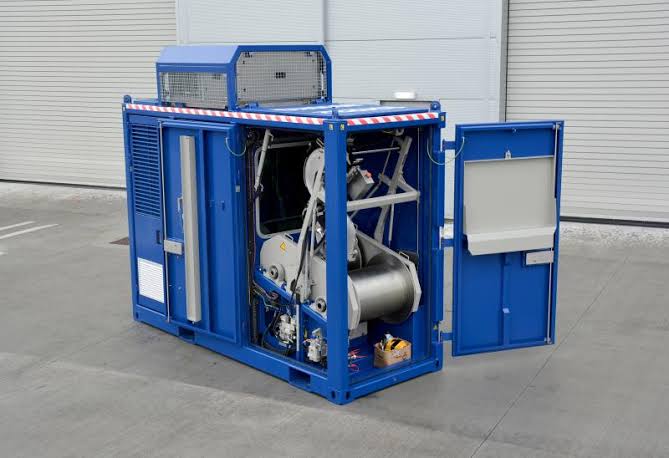

  • NOV ASEP SlimLineService & parts
  • NOV ASEP SlimSplitService & parts
  • NOV ASEP SlimSplit CService & parts
  • NOV ASEP Multi SplitService & parts
  • NOV ASEP Multi LineService & parts
  • NOV ASEP LandLine DService & parts
  • NOV ASEP SurveyLineService & parts
  • NOV UnilineService & parts
  • Elmar winch unitsService & parts
  • Benchmark winch unitsService & parts
  • Dyna Winch unitsService & parts

PCE

Pressure control equipment stacks for slickline and wireline rig-ups.

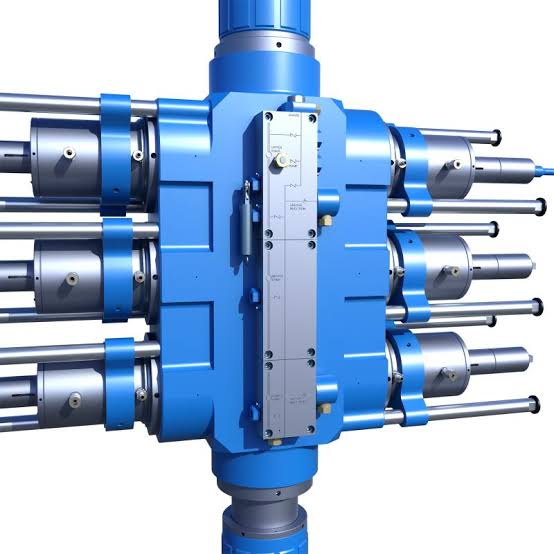

  • Wellhead equipment (WHE)Service & parts
  • Stack & lubricator componentsService & parts

Mast

Mast systems for slickline and wireline rig-ups.

  • NOV 40ft BaseReachService & parts
  • NOV 47ft HighReachService & parts
  • NOV 70ft SkyFoldService & parts
  • NOV 70ft Zone 1 LightweightService & parts
  • NOV 80ft Zone 1Service & parts
  • NOV 80ft Zone 1 Lightweight LatticeService & parts
  • NOV 95ft Truck MountedService & parts
  • Benchmark mastsService & parts
Manufacturers supported
NOV Elmar Benchmark Dyna Winch

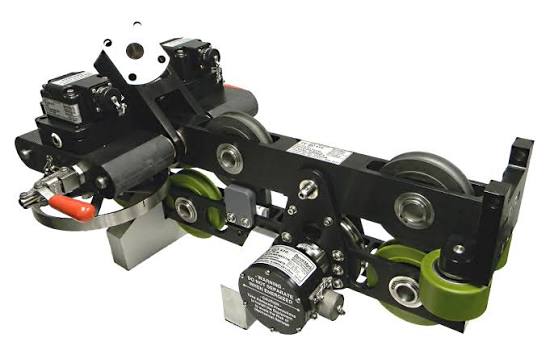

Measuring heads

Measuring heads we support

Open hole, cased hole and slickline/braided line measuring head models we service and supply parts for.

AM5K
Open hole / cased hole depth & tension device with straight-line measurement, mounted on a spooling arm.
  • Max tension25,000 lbs
  • Weight58 lbs
  • MountSpooling arm
  • MeasurementEncoders (1–2) & load pin
  • Line size4.8–22.0 mm / .190–.875"
AM3K
Light, compact cased hole depth & tension device, mountable in three spooling arm configurations.
  • Max tension10,000 lbs
  • Weight30 lbs
  • MountSpooling arm (3 types)
  • MeasurementEncoders (1–2) & load pin
  • Line size3/16–3/8"
Shark
Compact, economical, rugged slickline/braided line head with encoder and load pin. Bottom mounted.
  • Max tension4,500 lbs
  • Wheels2 · 4.00 ft circ.
  • Weight94 lbs
  • MountBottom
  • Line size.092–.125 & 3/16"
MegaMouth
Medium size head with increased tension capacity for larger line sizes. Encoder and load pin, bottom mounted.
  • Max tension9,000 lbs
  • Wheels2 · 4.00 ft circ.
  • Weight110 lbs
  • MountBottom
  • Line size.092–.125 & 3/16–1/4"
Tiger Shark
MegaMouth-class head with a third wheel for greater accuracy, plus a hydraulic load cell. Bottom mounted.
  • Max tension9,000 lbs
  • Wheels3 · hydraulic load cell
  • Weight141 lbs
  • MountBottom
  • Line size.092–.125 & 3/16–1/4"
Dolphin
MegaMouth-class head with a third wheel and hydraulic load cell for greater accuracy. Top mounted.
  • Max tension9,000 lbs
  • Wheels3 · hydraulic load cell
  • Weight132 lbs
  • MountTop
  • Line size.092–.125 & 3/16–1/4"
Mako
Base model of the largest measuring head series — higher tension capacity and larger line sizes. Bottom mounted.
  • Max tension15,000 lbs
  • Wheels2 · 5.33 ft circ.
  • Weight133 lbs
  • MountBottom
  • Line size.092–.160 & 3/16–5/16"
Orca
Heavy duty slickline/braided line device with secondary hydraulic tension measurement, overhead spooling bar mount.
  • Max tension15,000 lbs
  • Wheels3 · hydraulic load cell
  • Weight310 lbs
  • Mount40mm overhead bar
  • Line size.092–5/16" / 2.33–7.93 mm
Thresher
Mako-class head plus a third wheel for increased accuracy, with hydraulic load cell. Bottom mounted.
  • Max tension15,000 lbs
  • Wheels3 · hydraulic load cell
  • Weight350 lbs
  • MountBottom
  • Line size.092–.160 & 3/16–5/16"
Who we work with

Trusted by leading service providers

Main client

Expro Worldwide

Ongoing equipment service and parts support for slickline and wireline operations.

Main client

Schlumberger Overseas

Ongoing equipment service and parts support for slickline and wireline operations.

Get in touch

Talk to Welmar Oilfield

Reach out for equipment service, parts orders or rig-up support across Qatar, Saudi Arabia, UAE and Oman.

Need equipment serviced?

Send your unit spec, location and manufacturer (NOV, Elmar, Benchmark or Dyna Winch) and our team will respond with turnaround and parts availability.

Email Welmar Oilfield
